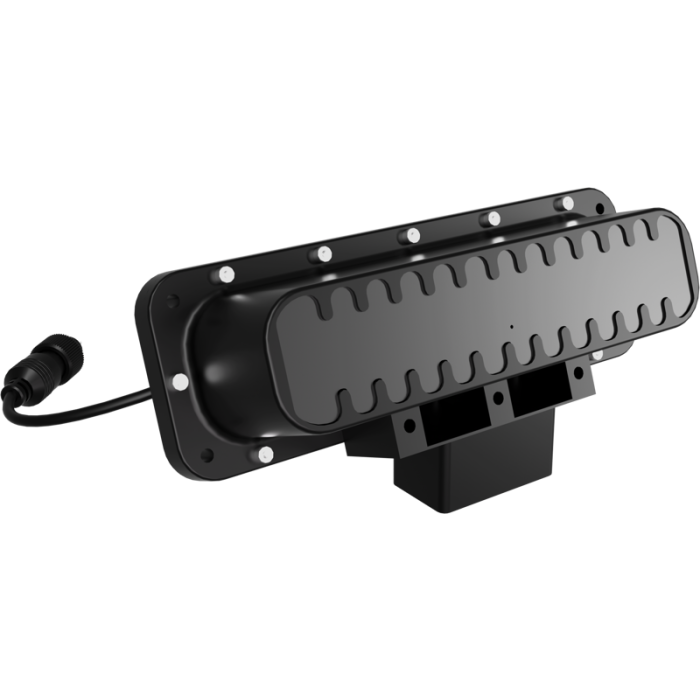

As the ROV or surface vessel moves, CeruleanThe Omniscan 450 FS is ideally suited for forward looking ROV applications. The transducer and electronics are housed in a single enclosure with Ethernet + power interface. Two enclosure options are available for 100m or 300m depth rating.SonarView “paints” the image of the scanned area of the sea floor giving excellent situational awareness in the murkiest conditions.In the case of a surface vessel with GPS or an ROV with DVL, scanning is translational as well as rotational. For underwater vehicles without positioning information, Omniscans Dopper Position Tracking can be used for translational information in the direction of the beam. Using a pair of Omniscan 450 FS units, one forward and one 90 degrees to either side, full 2d motion tracking is available. This also enables position hold mode.To mount the sonar to the M2 Pro Max you also need the quick mounting bracket, article 128907 .
Lisainformatsioon
| Kaubamärk | CHASING-INNOVATION |
|---|---|
| MPN | 40.30.700.0095 |
