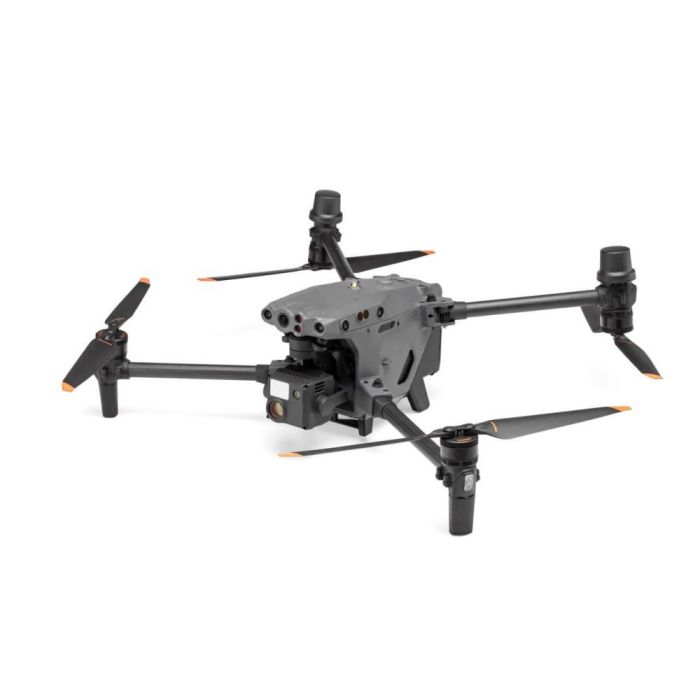

DJI Matrice 30T | Thermal - Designed for real heroes
- A unique intellectual video system for any task.
- Incredible reliability in harsh environments.
- Easy to take anywhere.
- Ready to go with you wherever you go and help you in different situations.

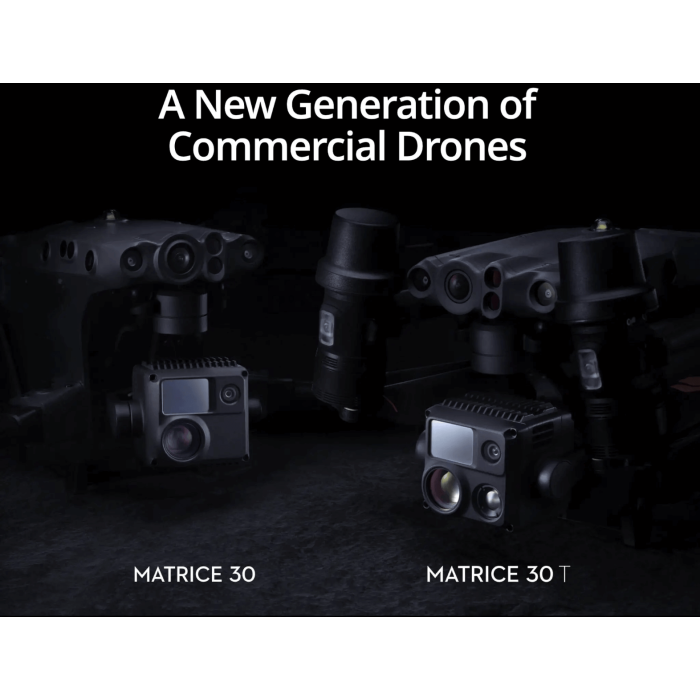

- A new generation of industrial drones.

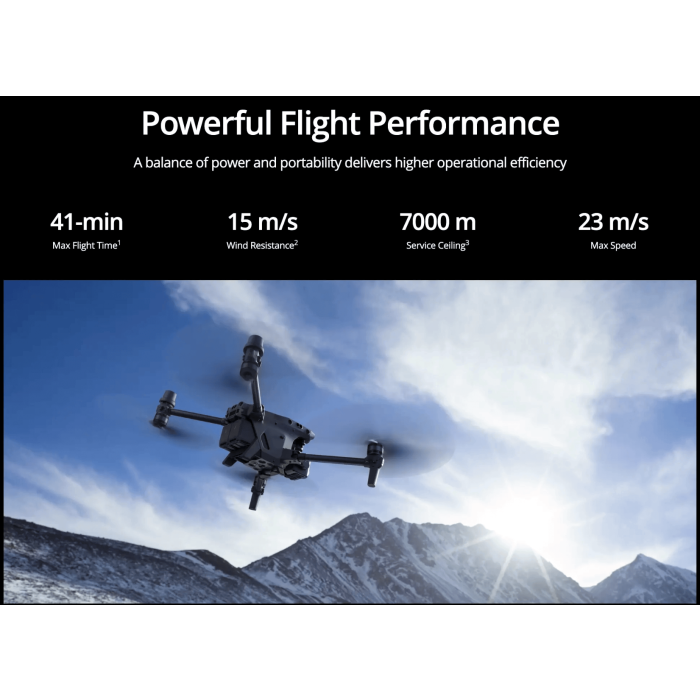

Excellent flight performance
The perfect combination of power and portability to increase the efficiency of your tasks.
- Maximum flight time - 41 minutes. [1]
- Maximum allowable wind speed - 15 m/second. [2]
- Practical ceiling - 7000 metres. [3]
- Maximum wind speed - 23 m/sec.
Flexibility to environmental factors
The Matrice 30 is IP55 rated, allowing you to operate the drone in adverse weather conditions and temperatures from -20°C to 50°C.
Safety and reliability
Dual vision and ToF sensors are mounted on all six planes of the drone. This ensures a high level of safety when working and the safety of people nearby. A built-in ADS-B receiver provides timely warning of nearby aircraft.

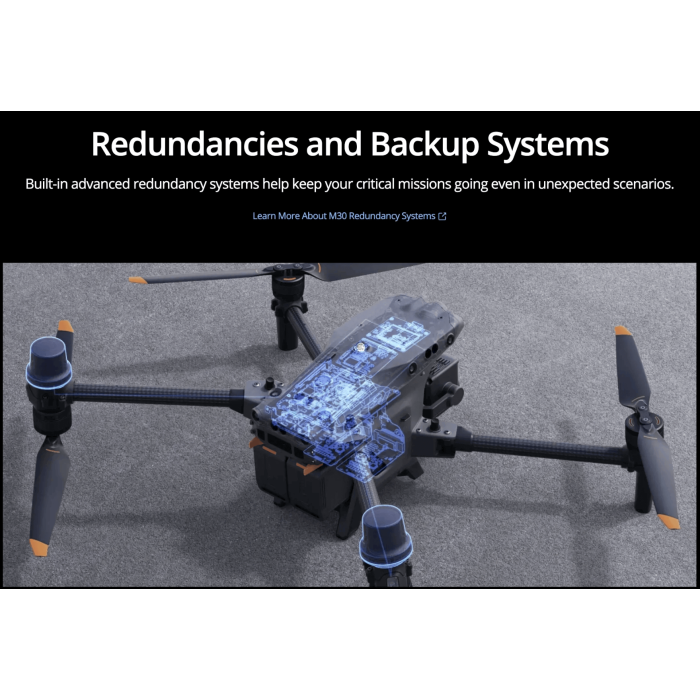

Backup and duplication of data from critical systems
DJI has built the Matrice 30 on proven solutions, such as a built-in advanced data backup system to help cope with a variety of critical situations.
Best data transmission quality
Four built-in antennas support the OcuSync 3 Enterprise transmission system, which provides three-channel 1080p video transmission and seamless input stream switching in a variety of operating conditions, including harsh ones.
You can enhance the signal with the optional 4G modem DJI Cellular Module, which ensures stable video transmission in harsh conditions or over long distances.
Light and compact

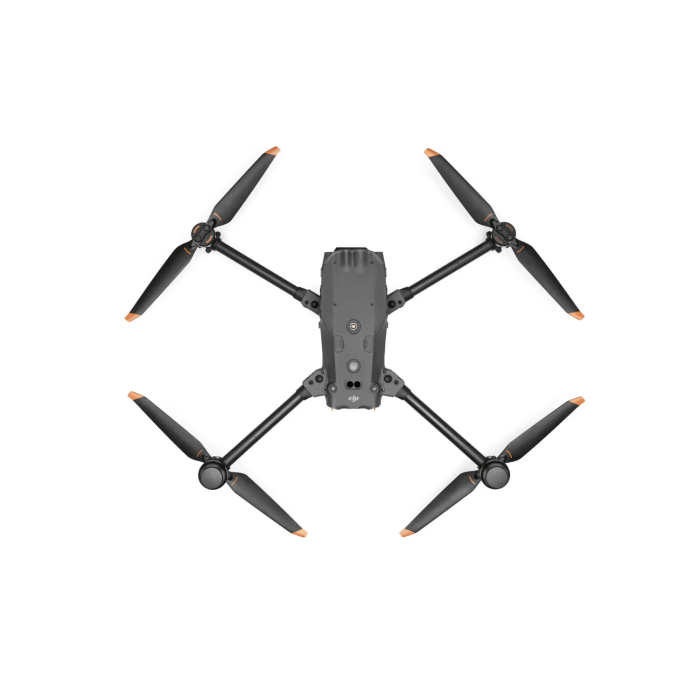

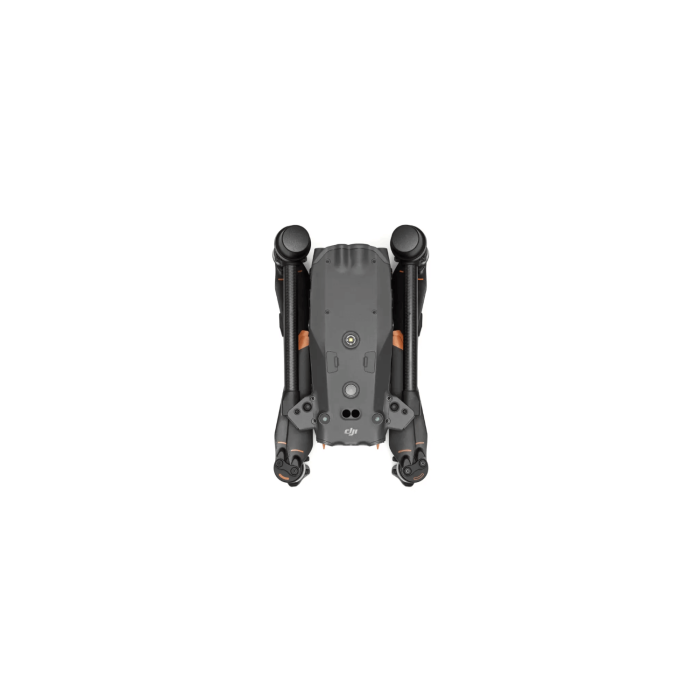

The design of the Matrice 30 has been thought through to the finest detail. You will have a compact drone with a folding mechanism for easy packing and transport.
Film whatever you want
The Matrice 30 series drones are equipped with a range of professional cameras: a wide-angle camera, a zoom camera and a thermal camera (M30T model only). Together with an integrated laser rangefinder, they help you get all the data you need from the air.
Wide Angle Camera
- EGF: 24 mm, DFOV: 84°.
- CMOS sensor 12 MP 1/2 inch
- Video resolution: 4K/30fps
Zoom Camera
- 48 MP 1/2" CMOS sensor
- Optical zoom 5x-16x
- Max. hübriidsuum 200x
- Photo resolution: 8K
- Video resolution: 4K/30fps
Thermal Camera
- EGF: 40 mm
- Resolution: 640×512
- Frame rate: 30fps
- Measurement accuracy: ±2°C or ±2% [5]
Laser Rangefinder
- Distance: 3 m - 1200 m
- Accuracy: ±(0.2 m+D × 0.15%) [6]
Designed specifically for professional use

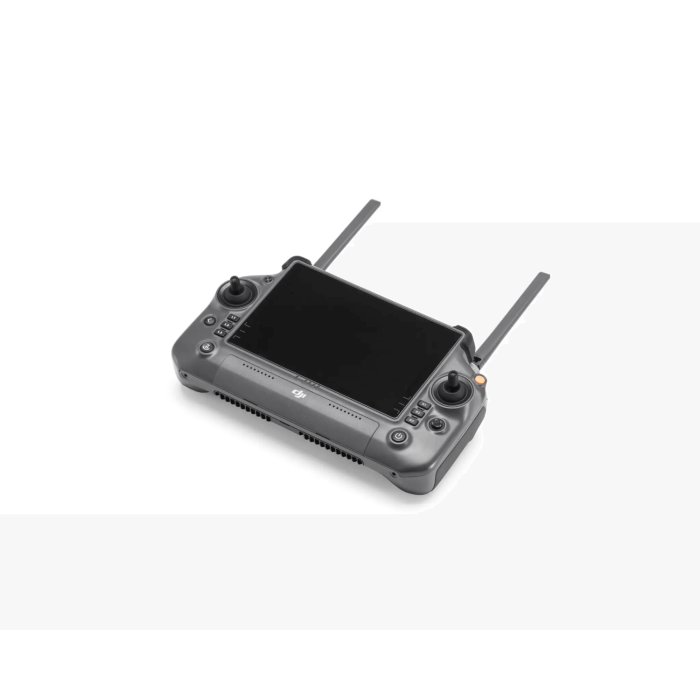

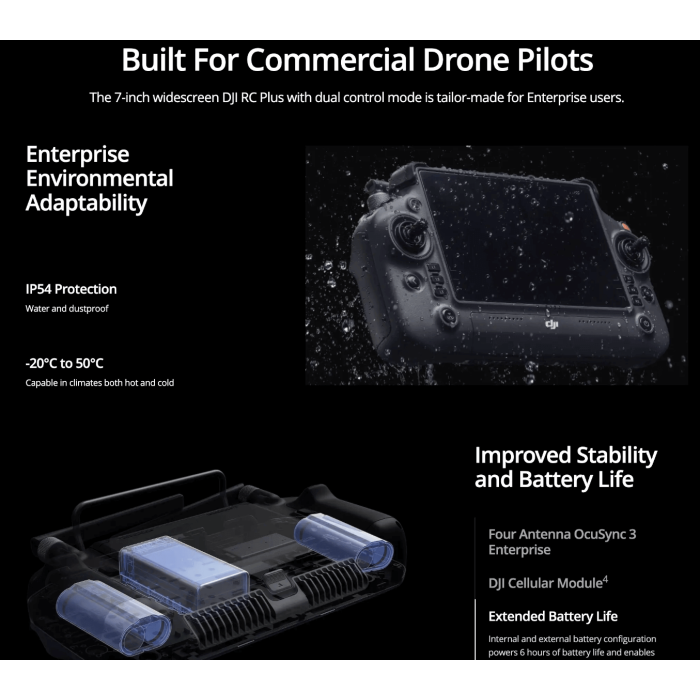

The DJI RC Plus remote control is equipped with a 7-inch touchscreen display, with two control modes for tasks in industrial environments.
The module is adapted to operate in harsh environments, with IP54 protection, protection against water and dust, the ability to operate in temperatures from -20°C to 50°C. The remote control has two built-in dual control functions with two built-in built-in functions.
Improved operating stability and battery life.
4 Antennas and OcuSync 3 Enterprise Transmission System
Removable dual antennas combined with OS 3 system help cover a large area and transmit stable video.
DJI Mobile Module [4]
Connect the DJI cellular module to the OcuSync 3 Enterprise for additional 4G support.
Longer Runtime
Battery configurations allow 6 hours of autonomous operation.
New DJI Pilot 2 app
Updated user interface designed to improve piloting efficiency and flight safety.
Ergonomic design for safety and performance allows the pilot to easily interact with the DJI RC Plus. On-screen and other configurable buttons are easily accessible and allow operations such as adjusting camera view and resetting points to be performed quickly and easily.
DJI FlightHub 2
FlightHub 2 Enterprise Software - is an updated system that allows you to control and command your drones very easily and seamlessly. Work scheduling, fast control, coordination of operations.
1. Measured at a cruise speed of 36 km/h in a calm environment. Actual flight time may vary depending on environmental conditions, flight mode and accessories.
2. Take-off and landing with wind speeds of up to 12 m/s. Wind speeds may vary in accordance with the flight rules.
3. The maximum altitude of 7000 m is achievable with high altitude propellers.
4. The DJI mobile module is not available in some areas. Please contact your local dealer for details.
5. For both, the maximum value is calculated.
6. Where D indicates the distance from the vertical reflective surface.

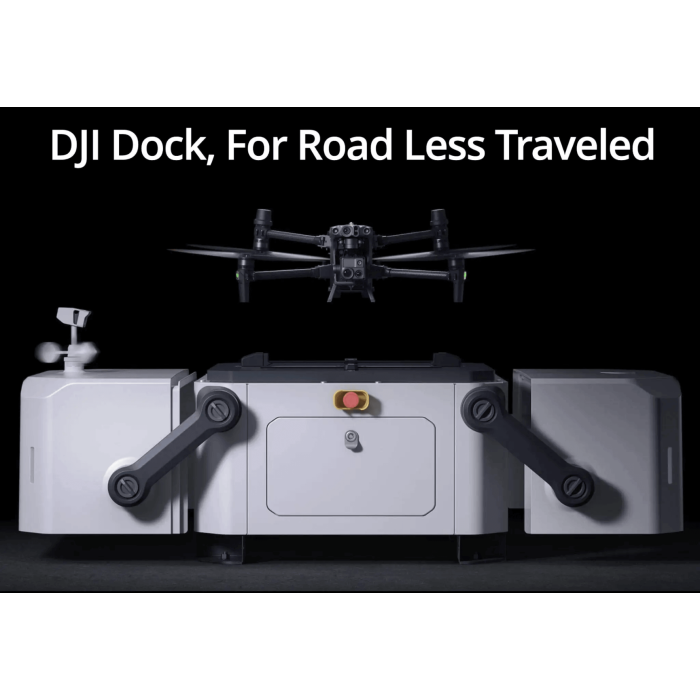

7. The Matrice 30 series (designed for dock stations) has a built-in additional charging module. Please note that the M30 series is not compatible with the DJI Dock and cannot be modified to make it compatible.
8. Measured in a clean environment with no transmission or signal interference.
9. Based on an ambient temperature of 25℃. As the ambient temperature rises, the cooling time of the battery will increase and the operating interval will increase.
10. The TB30 is capable of up to 400 charge cycles in 12 months when charged 90% or more in less than 120 days. Battery information can be viewed in the management system in the DJI Pilot app.
| Description line | Model name Matrice 30T | Enterprise | Motors 3511 | Speed 23 m/s | Sensor 1/2" | Shutter Speed Video: 1/8000-1/30 s | Wireless LAN | Bluetooth | Battery Not included | Flight time 41-Min Max | GPS | Dimensions unfolded: 470×585×215mm, folded: 365×215×195 mm | Unit Net Weight 3.77 kg |
| Vendor Homepage | www.dji.com/lv/matrice-30/specs |
| Motors | 3511 |
| Speed | 23 m/s |
| Sensor size | 1/2" |
| Electronic Shutter Speed | Video: 1/8000-1/30 s |
| Battery | Not included |
| Flight time | 41-Min Max |
| Operating temperature range | -20° to 50° C |
| Dimensions | unfolded: 470×585×215mm, folded: 365×215×195 mm |
| Shipping box quantity | 1 |
| Shipping Box Weight | 16.2 kg |
| Unit Brutto Volume | 0.107935 cubm |
| Unit Box Width | 0.315 |
| Unit Box Length | 0.77 |
| Unit Box Height | 0.445 |
| Full Description Line | Model name Matrice 30T|Enterprise|Motors 3511|Speed 23 m/s|Sensor 1/2"|Shutter Speed Video: 1/8000-1/30 s|Wireless LAN|Bluetooth|Battery Not included|Flight time 41-Min Max|GPS|Dimensions unfolded: 470×585×215mm, folded: 365×215×195 mm|Unit Net Weight 3.77 kg |
Lisainformatsioon
| Kaubamärk | DJI |
|---|---|
| MPN | CP.EN.00000368.02 |
| EAN | 6941565929488 |
| Toote tüüp | DRO |
| Tooteseeria | DJI ENTERPRISE |
| Tootjagarantii, kuud | 24 |
| Tootjagarantii aastates | 2 years |
| Brutokaal, kg | 16.2 kg |
| Netokaal, kg | 3.77 kg |
| Drooni tüüp | Enterprise |
| Drooni mudel | Matrice 30T |
